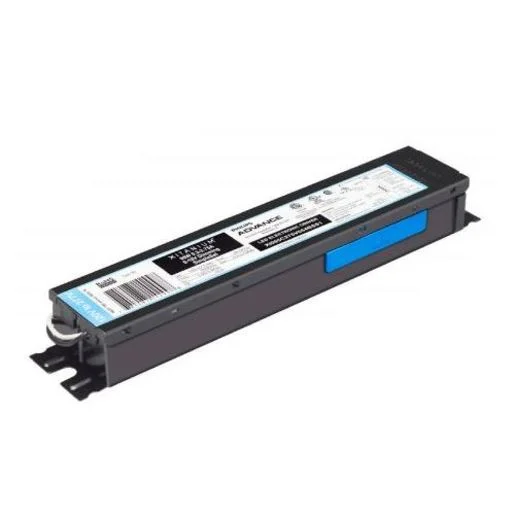

XI095C275V054BSS1 Advance Xitanium Programmable Constant Current LED Driver – 95W 2300mA-Fast Shipping

Description

Advance Xitanium Constant Current LED Driver with SimpleSet, 95W Max Power Output, Universal 120V-277V Input, Programmable Fixed Output Current 1000-2750mA (2300mA factory default), Output 20-54V, Analog 0-10V Dimmable 5%-100%, Damp/Dry/HL rated

Advance Xitanium 95W Programmable LED Power Supply

With SimpleSet Adjustable Output Current

Total Output Power: 95 Watts

Output 1000-2750mA, 2300mA factory default

Input Voltage: 120-277 VAC

Output Voltage Range: 20V-54V

UL Damp and Dry and Hazardous Location Rated

Dimmable 5%-100%, 0-10V Analog

Class 1 and Class 2 Wiring

6kV combi-wave surge rating to comply with ANSI C82.77-5 CAT C low

Spec Sheets

XI095C275V054BSS1 Spec Sheet
