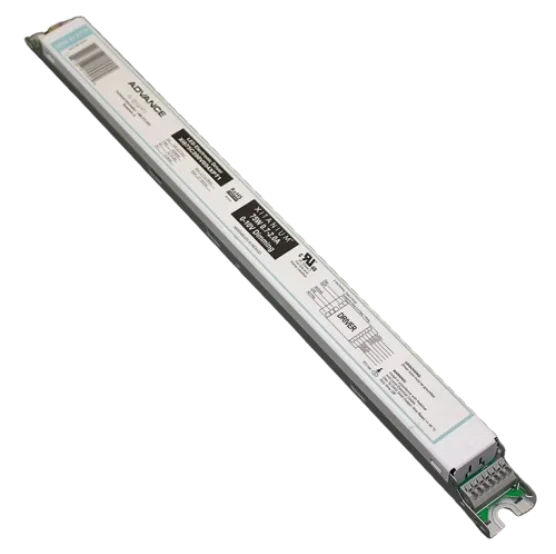

XI075C200V054XPT1 Advance Xitanium Adjustable Constant Current LED Driver – 75W 700mA Dimmable-Fast Shipping

Description

Advance Xitanium Adjustable Output Current LED Driver, 75W Max Power Output, Universal 120V-277V Input, Adjustable Output Current (AOC) 700-2000mA (factory default 700mA), 27-54V Output Voltage, Analog 0-10V Dimmable 5%-100%

Advance Xitanium 75W 700mA Programmable LED Driver

Xitanium 75W 0.7- 2A 54V 0-10V/TE Dimming LED Driver

Total Output Power: 75 Watts

Output Current: .7-2.0A (factory set 0.7A)

Input Voltage: 120 to 277 VAC

Output Voltage Range: 27V-54VDC

UL Damp and Dry

Dimmable 5%-100%, 0-10V Analog

Class 2 Wiring

Max nominal output current setting: Possible by external resistor between Rset 2 and Sgnd connector

Replaces: Grainger 30YH78, Philips XI075C200V054XPT1

Spec Sheets

Advance Xitanium XI075C200V054XPT1 Specs
