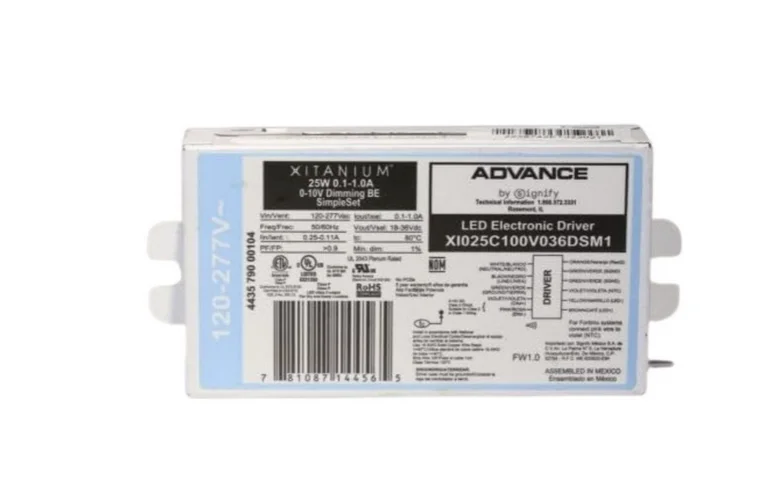

XI025C100V036DSM1 Advance Xitanium Programmable LED Driver – 25W 1000mA Bottom-Entry-Studs-Fast Shipping

Description

Advance Xitanium LED Driver with SimpleSet Programmable, 25W Max Power, Universal 120V-277V Input, 100-1000mA Output Current (factory default at 1000mA), Output 18-36V, Analog 0-10V Dimming 1%-100%, Bottom Entry Leads with Studs

Advance Xitanium 25W 1000mA LED Driver

Xitanium 25W 1A 36V Output Max Programmable Dimmable LED Driver

Replaces: Philips Xitanium XI025C100V036DNM1, XI025C100V036DNMX

Total Output Power: 25 Watts

Programmable Fixed Output Current 100-1000A, factory set at 1000mA

Input Voltage: 100-277 VAC

Output Voltage Range: 18V-36V

UL Damp and Dry

Dimming Analog 0-10V 1% ~ 100%

Operating Temp Range: -20 to +50 °C

Bottom Entry Leads with 2″ center studs

Class 1 and Class 2 Wiring

Spec Sheets

Advance Xitanium XI025C100V036DSM1 Specs
