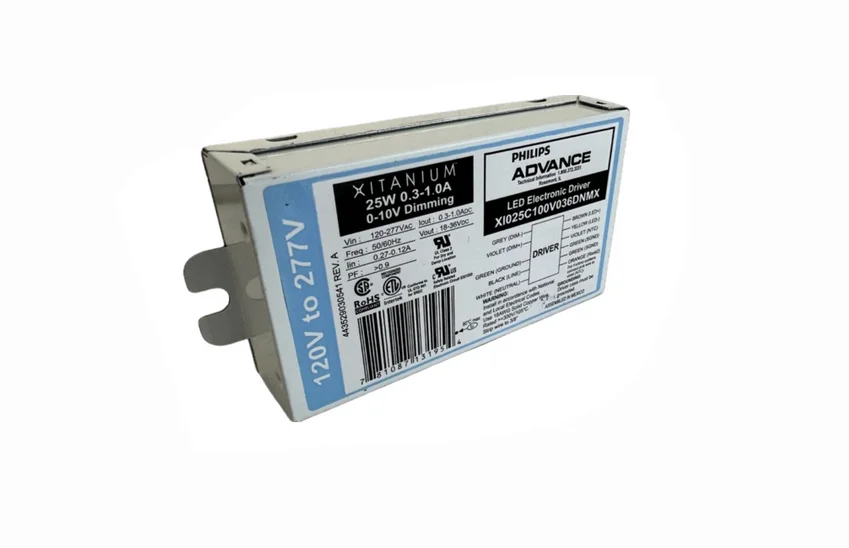

XI025C100V036DNMX Advance Xitanium Programmable LED Driver – 25W 1000mA Bottom-Entry-Studs-Fast Shipping

Description

Advance Xitanium LED Driver with Adjustable Output Current (AOC), 25W Max Power Output, Universal 120V-277V Input, 100-1000mA Output Current (Factory Default 1000mA), Output 18-36V, Dimmable 0-10V 15%-100%, Bottom Entry Leads with Studs

DISCONTINUED BY MANUFACTURER – NOW SHIPPING MANUFACTURER’S SUGGESTED REPLACEMENT – Please review replacement to confirm it will work for your application and order here: Manufacturer’s Suggested Replacement

Advance Xitanium 25W 1000mA LED Power Supply

25W 0.1-1.0A 36V 0-10V INT

Total Output Power: 25 Watts

Adjustable Output Current 100-1000A, factory default at 1000mA

Current is set via a resistor Rset between Rset2 and SGND leads

Input Voltage: 100-277 VAC

Output Voltage Range: 18V-36V

UL Damp and Dry

Dimming Analog 0-10V 5% ~ 100%

Operating Temp Range: -20 to +50 °C

Bottom Entry Leads with 2″ center studs

Class 1 and Class 2 Wiring

Spec Sheets

Advance Xitanium XI025C100V036DNMX Specs
