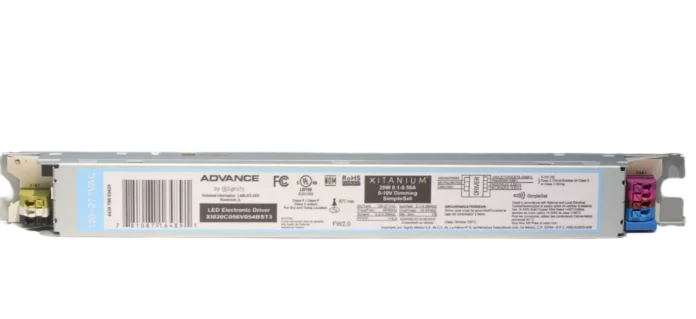

XI020C056V054BST3 Advance Xitanium Programmable Constant Current LED Driver – 20W 560mA-Fast Shipping

Description

Advance Xitanium Constant Current LED Driver, 20W Max Power Output, Universal 120V-277V Input, Programmable Fixed Output Current 100-560mA (factory default 560mA), Output 10-54V, Analog 0-10V Dimmable 1%-100%

Asdvance Xitanium 20W LED Power Supply

Total Output Power: 20 Watts

Output Current: 100mA to 560mA via SimpleSet programming (factory default set at 560mA)

Input Voltage: 120-277 VAC

Output Voltage Range: 10V-54V

Dimming: Analog 0-10V 1%-100%

IP20 Rated

Class 2 Wiring

Operating Ambient Temp Range: -40°C to +55°C

Spec Sheets

Advance Xitanium XI020C056V054BST3 Specs
