Description
NX Lighting (Hubbell) Universal Automatic Voltage Detection Power Pack, Universal 120-277V Input, Switching to 20A, Regulated 24Vdc and 150mA Output Current, Plenum rated with 1/2″ nipple

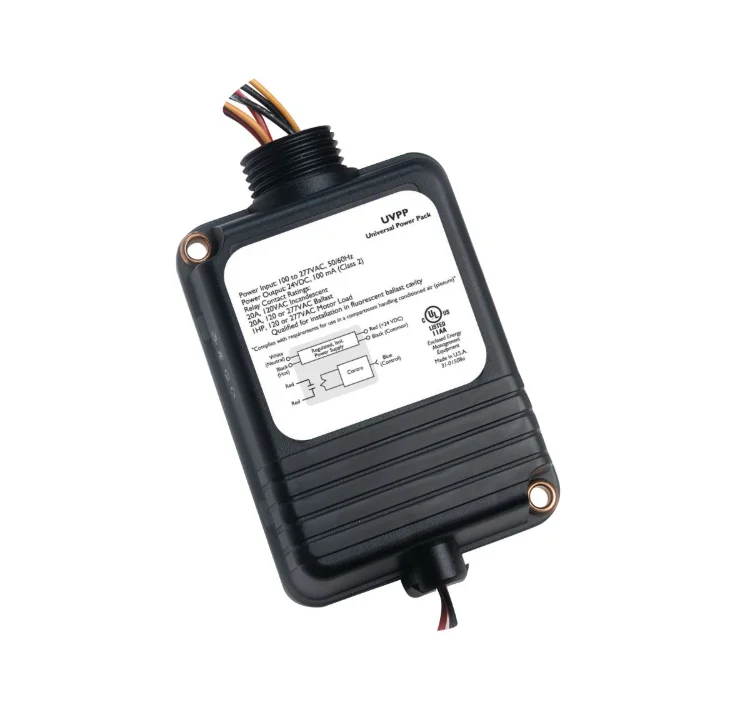

NX Lighting UVPP Universal Voltage Power Pack
The Universal Voltage Power Pack (UVPP) is a self-contained transformer and relay (an ON/OFF switch controlled by a circuit) designed for low-voltage 24 VDC occupancy sensors.
Features
Automatic voltage detection
Electrical loads switching capability: maximum of 20 Amps
Regulated 24VDC current; 150mA output
Companion auxiliary relay device available (MPSA)
Suitable for use in return air plenums
CA Title 24 Compliant
Electrical
24VDC; 150mA nominal, isolated, and regulated
20A: 120VAC incandescent
20A: 120 or 277VAC ballast
1HP: 120 or 277VAC motor load
Spec Sheets
NX Lighting UVPP Spec Sheet
NX Lighting UVPP Installation Instructions
