Description
These lights are able to meet all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector and license plate light in a revolutionary, cost-effective design. With a sonic-welded case and potted electronics, this light will survive the harshest environment. Unlike the competition, this lamp is actually submersible! Although every manufacturer claims that their box light is waterproof, leakage is still the main complaint. This allows us to guarantee a perfect, waterproof seal. It still fits in the industry-standard spacing, and uses standard hardware. If you ever manage to break the lens and the light fills with water, rest assured that the potted circuitry guarantees it will still continue to work for years!

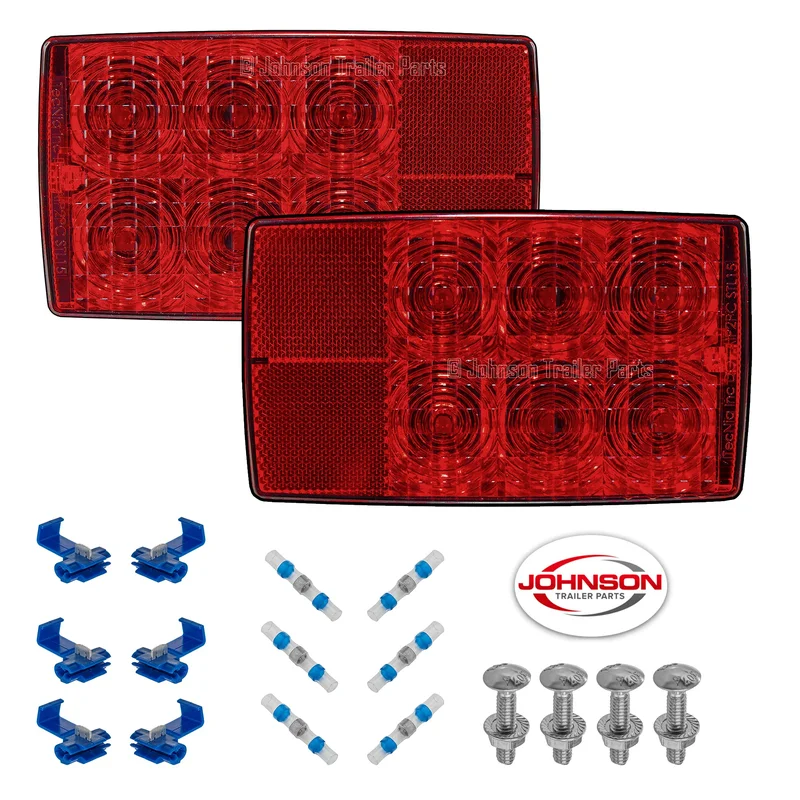

Included Parts:
- (2) 6″ Submersible LED Box Lights
- (6) Waterproof Solder /Shrink Butt Connectors (no crimping required)
- (6) Splice Connectors
- (4) Carriage Bolts with NutsMulti-Function 6″ box tail lights
- (1) Johnson Trailer Parts Sticker
LEDs: 7 +1 white license plate light on left side
Voltage: 9 – 14V DC
Current:
- 0.14A-0.17A (Left)
- 0.06A-0.08A (Right)
- 0.9A-0.15A (Brake)
Connector: 9″ Pigtail w/ ground ring
LED Colors: Red
Wire Colors:
- White Wire: Ground
- Brown Wire: Running Lights (Low Intensity)
- Green Wire: Right Turn / Brake
- Yellow Wire: :Left Turn / Brake
