Description
Magnitude Lighting SOLIDRIVE Series Constant Voltage LED Driver, 30W 50W 60W 96W Max Power Output, Universal 120V-277V Input, Fixed 12/24/36/48Vdc Output, Optional Analog 0-10V Dimming and Junction Box
Magnitude SOLIDRIVE Series Constant Voltage LED Power Supply
SOLIDRIVE is an electronic Class 2 LED driver with non-dimmable or analog 0-10V dimming to 1% and optional integrated junction box.
Max Power Output: 30W 50W 60W or 96W (minimum load 5W)
Input Voltage: 120-277VAC
Output Voltage: 12VDC, 24VDC, 36VDC, 48VDC
Dimming Option: non-dimming and analog 0-10V 1%-100%
Class 2 power supply

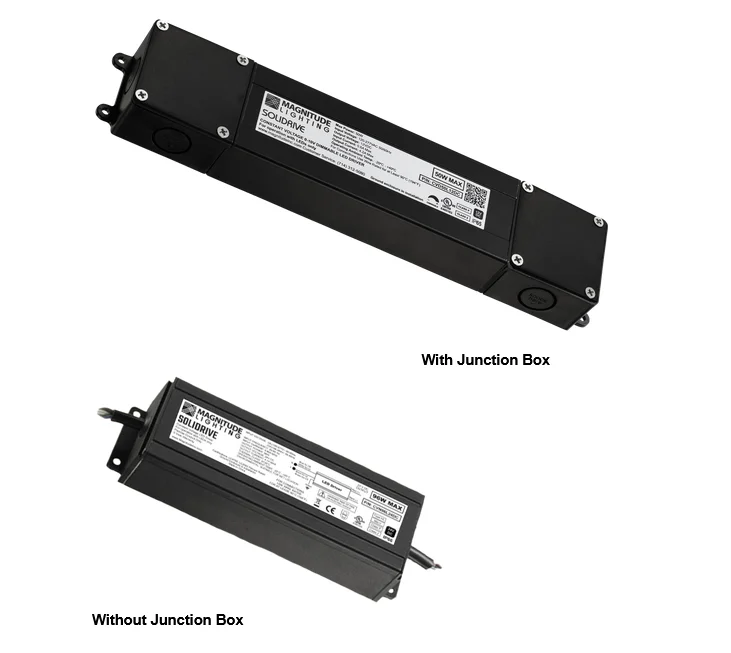

Junction Box Option: UL enclosure is rated IP66 for indoor or outdoor installations. Separate input and output wiring compartment each with three knockouts.
IP66 for indoor outdoor use
Spec Sheets
Magnitude SOLIDRIVE Series Spec Sheet
Magnitude SOLIDRIVE Series Installation Guide
Magnitude SOLIDRIVE Series Overload Protection
