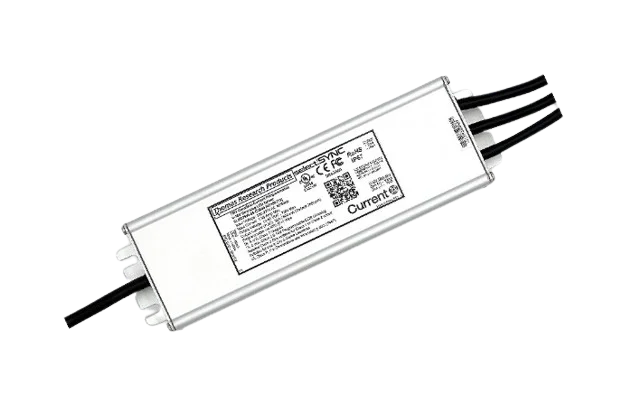

SLED75W-150-C1400 Thomas Research selectSYNC Programmable LED Driver – 75W 1400mA Dimmable-Fast Shipping

Description

Thomas Research Constant Current LED Driver, 75W Max Output Power, Universal 120-277V Input, Fixed Programmable Output Current 200-1400mA (factory default at 1400mA), 26-150Vdc Output, Analog 0-10V Dimmable

Thomas Research 75W 1400mA Programmable Constant Current LED Driver

Max Total Power: 75 Watts

Output Current Programmable: 200-1400mA (factory set at 1400mA)

Input Voltage: 120-277 VAC

UL Class P, Class 2

IP67 Dry & Damp Location Rated

Dimmable 0-10V with 0-100% adjustable minimum

Linear or logarithmic dimming curve options

Auxiliary 12Vdc, 200mA output for powering controls or fans

Spec Sheets

Thomas Research SLED75W-150-C1400 Specs

Thomas Research selectSYNC Brochure
