SLED150W-200-C2200 Current Thomas Research selectSYNC Programmable LED Driver – 150W 2200mA Dimmable-Fast Shipping

Description

Thomas Research Constant Current LED Driver, 150W Max Output Power, Universal 120-277V Input, Fixed Programmable Output Current 300-2200mA (factory default at 2200mA), 36-200Vdc Output, Analog 0-10V Dimmable

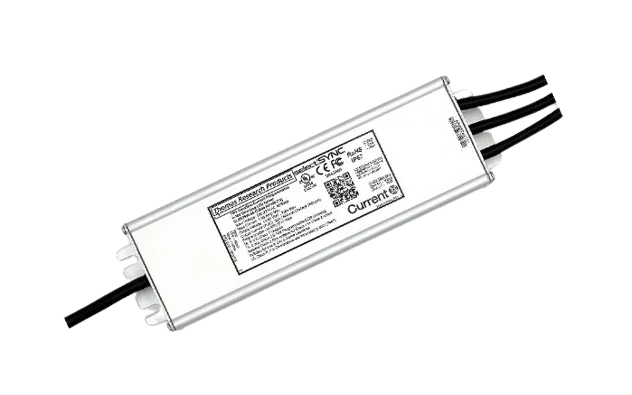

Thomas Research 150W Programmable LED Driver

Max Total Power: 150 Watts

Output Current Programmable: 300-2200mA (factory set at 2200mA)

Input Voltage: 120-277 VAC

UL Class P, Class 2

IP67 Dry & Damp Location Rated

Dimmable 0-10V with 0-100% adjustable minimum

Linear or logarithmic dimming curve options

Auxiliary 12Vdc, 200mA output for powering controls or fans

Spec Sheets

Thomas Research SLED150W-200-C2200 Specs

Thomas Research selectSYNC Brochure
