Description

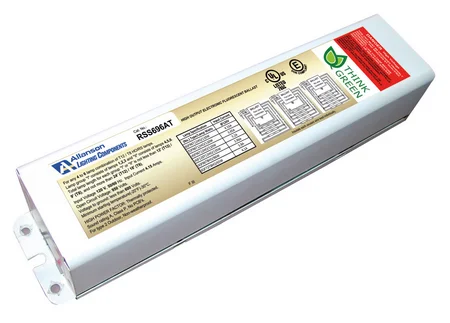

Allanson RSS Fluorescent Sign Ballasts, 120V, Four-Five-Six Lamp operation with total lamp footage of 18′ min and 36′ max for T8HO or 24′ min and 48′ max for T12HO, or up to 4 x 10′ tubes, Rapid Start Ballast.
DISCONTINUED BY MANUFACTURER, NOW SHIPPING RECOMMENDED REPLACEMENT – Please review replacement to confirm appropriate for your application and order here: RSS696AT-120-277V
Allanson RSS Sign Ballasts – T8HO T12HO Lamps – Series Wiring
The Allanson RSS is an electronic ballast with solid state technology designed to replace magnetic ballast with the same wiring. The benefits to you include significant energy savings as well as smaller case size that allows for low profile signage board applications.
Features include
Ultra Low Cold Weather Start down to -20 degrees F
Low RFI and EMI interference
Sound Rated “A” for quiet operation
Open circuit Voltage 950V
Note – Operates up to 4 of the 10 ft tubes
Candidate to replace the following (please review specification sheet):
Universal 256-4120-800 256-648-800 256-672-800 256-696-800
France 4128DR 568DR 668DR 688DR
Transco TRA-4120-2040 TRA-648-1624 TRA-672-2436 TRA-696-3048
