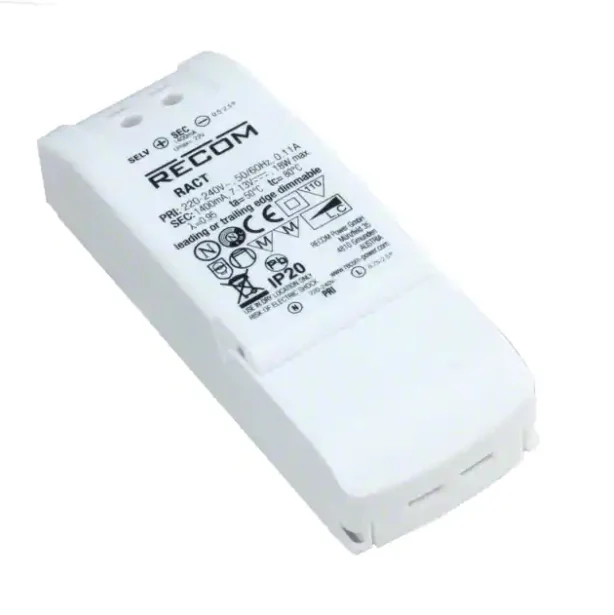

RACT25-700 RECOM AC-DC LED Driver, Universal Input 198-264V, 700mA constant current output, Triac Dimming
RECOM 25W AC/DC Dimmable LED Driver
The RACT25-xxx series are low cost, triac-dimmable, constant current 25W LED drivers available with either 500mA, 700mA or 1.05A full-range outputs. The drivers are Class II (double insulated) meaning no earth connection is required. The phase angle dimming works with leading or trailing edge dimmers. The RACT25 is suitable for indoor locations up to 50°C ambient temperature and is certified for building into furniture for applications such as dimmable shelf lighting, cove lighting or accent lighting. It is CE (LVD + EMC + RoHS) + EAC marked and has IEC61347-1/IEC61347-2-13 CB report certification.
Total Power: 25 Watts
Constant Current Output: 700mA
Output Voltage: 18-36V
Input Voltage: 198-264VAC
IP20 Rated
Triac dimmable with leading or trailing edge dimmers
Class II with SELV output (no earth required)
Extra-large screw terminals and integrated cable clamps for easy installation
Power factor corrected>0.95
Dimming range 1..100%
Compatible with a wide range of dimmers
