Description
Fulham Pony Field Select Constant Current LED Driver, Up to 33.6W Power Output, Universal 120V-277V Input, Switch Select Fixed Output Current 650/700/750/800mA, Output 30-42V, Dimmable 0-10V Analog 10%-100%

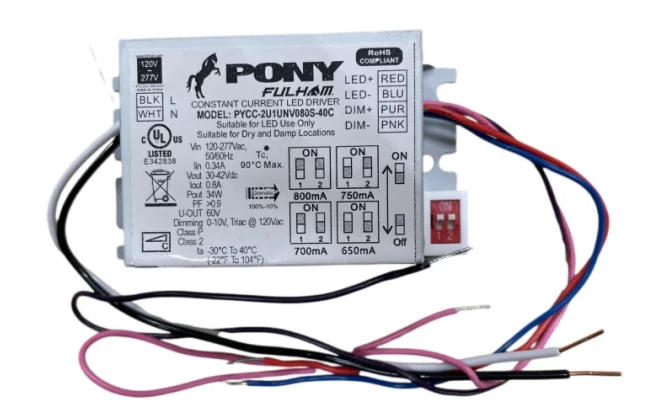

Fulham Pony 40W Selectable Constant Current LED Driver
Total Max Output Power: 33.6W (40W nominal)
Select Fixed Output Current (Lumen): 650ma or 700mA (Low) or 750mA (Med) or 800mA (High)
Output Voltage Range: 30-42VDC
IP20 Rated
Dimmable 10%-100%, 0-10V Analog or Phase @120V
Class 2 Wiring
Compact form factor
Click on Link Below to View Compact Field-Select Current Models:
| Model Number | Max Output Power (W) | Fixed Output Current (mA) | Output Voltage Range (VDC) |
| PYCC-2U1UNV040S-20C | 17 | 250 / 300 / 350 / 400 | 30-42 |
| PYCC-2U1UNV060S-30C | 25 | 450 / 500 / 550 / 600 | 30-42 |
| PYCC-2U1UNV080S-40C | 34 | 650 / 700 / 750 / 800 | 30-42 |
| PYCC-2U1UNV100S-40C | 40 | 850 / 900 / 950 / 1000 | 30-40 |
Spec Sheets
Fulham Pony PYCC-2U1UNV080S-40C Spec Sheet
