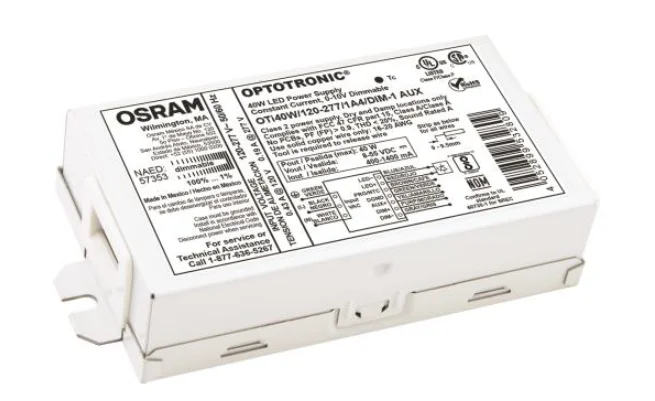

OTi40W/120-277/1A4/DIM-1/J eldoLED OPTOTRONIC (57352/274A1L) Programmable Constant Current LED Driver – 40W 700mA Stud-Mount-Fast Shipping

Description

OPTOTRONIC Constant Current LED Driver, 40W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current 400-1400mA (factory default 700mA), Output Voltage 8-55VDC, 0-10V Analog Dimming with 1-100% Range, J-style case with bottom exit stud mounting

Optotronic 40W Programmable Constant Current LED Driver Stud-Mount

40W Programmable AC DC Converter

Input Voltage: 120-277 VAC

Output Voltage: 8-55V DC

Output Current: 400-1400mA programmable, FACTORY SET TO 700mA

0-10V Analog Dimming 1%-100%

J-style: Bottom exit quick connect wiring, 2″ PEM Studs

Spec Sheets

OTi40W/120-277/1A4/DIM-1/J Optotronic (57352/*274A1L) Spec Sheet

OPTOTRONIC Programmable Compact Dimmable LED Drivers

Technical Guide
