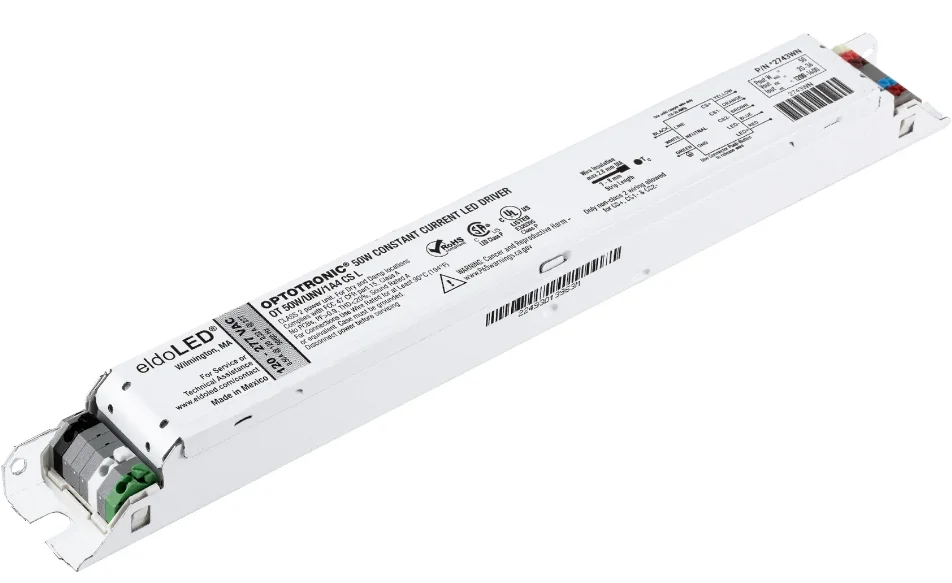

OT50W/UNV/1A4 CS L OPTOTRONIC Current Select LED Driver – 50W 1200/1300/1400mA-Fast Shipping

Description

OPTOTRONIC Current Select LED Driver, 50W Max Output Power, Universal 120-277V Input, Field Selectable Fixed Output Current 1200mA/1300mA/1400mA, 20-36VDC Output, Optional 0-10V Analog Dimming 10%-100%

Optotronic 50W Field Select Constant Current LED Driver 1200/1300/1400mA

These LED drivers achieve three output current levels by shorting the current selection pins on the driver with dimming optional down to 10%

AC to DC Converter

Max Power Output 50W

Input Voltage: 120-277 VAC

Output Voltage: 20-36V DC

Field Select Output Current: 1200mA/1300mA/1400mA

Class 2 or non-Class 2 wiring allowed

Dry and Damp Rated

Dimmable Models: 0-10V Analog Dimming 10%-100%

Models:

*2743WN 57439 OT 50W/UNV/1A4 CS L (non-dimming)

*2743WP 57440 OT 50W/UNV/1A4 CS DIM L (dimming)

Note: Osram Optotronic brand in now part of the Acuity eldoLED Optotronic family.

Spec Sheets

OPTOTRONIC Current Select LED Drivers

OPTOTRONIC OT 50W Current Select LED Driver
