Description

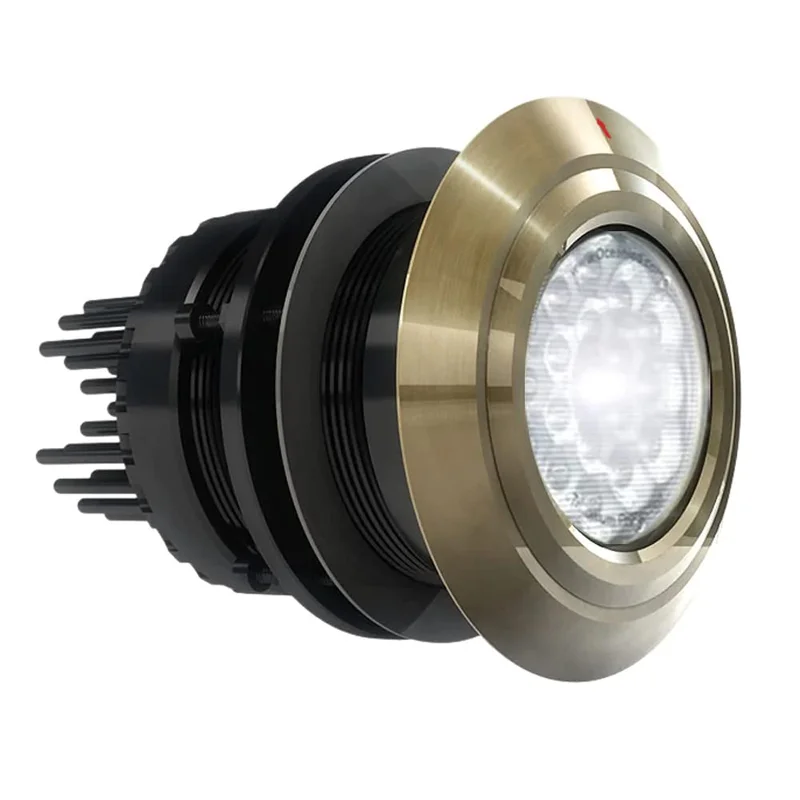

Pro Series XFM HD Gen2
XFM models, or Xchangeable Flush Mounts, are just that – they’re exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.
At 10,000-fixture lumen brightness the 3010XFM HD Gen2 model is 43% brighter
than its predecessor by exploiting the next generation of High Definition LEDs from Cree.
Suitable for all hull types over 65′ (20m) using 4 or more lights with spacing of 3-6′ (1-1.8m) – for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plugand- play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium glass lens. Three super bright LED color options.
For a light that’s less bright choose 2010XFM HD Gen2. For a light with a smaller hole cut-out better suited for transom mount applications choose 3010TH. For a light with color-change capabilities choose from our Colours models.
- 12/24vDC (AC Upgrade Available)
- 40,000+ Hour Life
- Tritonium Marine Growth Protection
- Plug & Play
- Aluminium Bronze AB2
- Factory Sealed
- Reverse Polarity Protected
Mounting Recommendations:
Boat Size:up to 65′ (20M)
Transom Spacing:3-6′ (1.0-1.8M)
Transom Quantity: 4+
Hull Spacing:4-8′ (1.2-2.4M)
Installation Depth (to top of fixture): 10-12″ (250-300mm)
Technical
Light Output Equivalent To: 2x100W HID Metal Halides
Fixture Lumens (total light output from a finished fixture): 10,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 10A / 24VDC 5A
