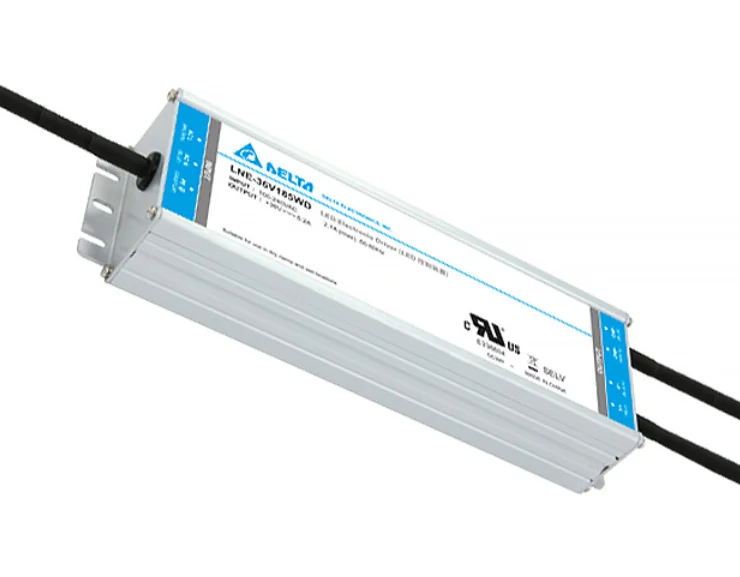

LNE-36V120WDAA Delta Constant-Power LED Driver – 120W Dimming-Fast Shipping

Description

Delta LNE-36V120WDAA Configurable Constant Power (Adjustable current and voltage) 120W LED Driver, Dimming, 90-305Vac input, adjustable 36Vdc and 3400mA output.

Delta 120W 3400mA / 36VDC Adjustable Dimming LED Driver

Programmable, Enabling Hundreds of Configurations – potentiometers to adjust output voltage & constant current (CC) level

Output Current Range: 1700-3400mA

Output Voltage Range: 18-36Vdc in CC mode and 33-40Vdc in CV mode

Dimming Controls: Analog (0-10V), PWM

IP67 and UL Dry/Damp Location

High surge immunity (common mode: 6kV, differential mode: 4kV)
