LNE-24V120WDAA Delta Constant-Power LED Driver – 120W Dimming-Fast Shipping

Description

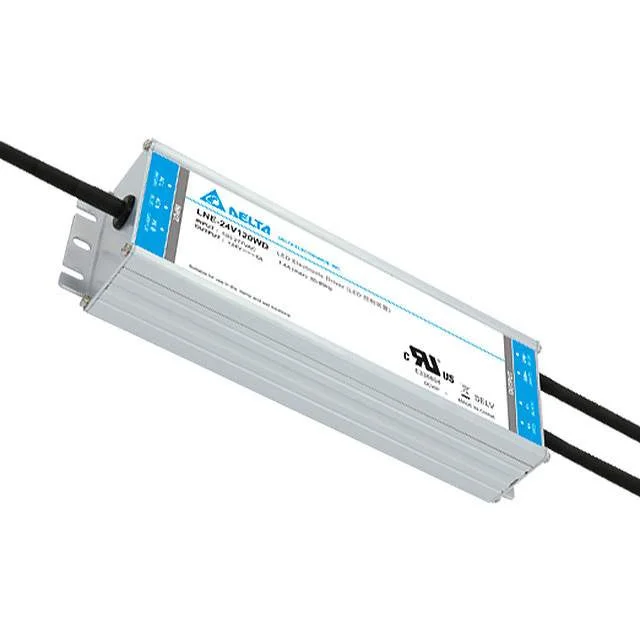

Delta LNE-24V120WDAA Configurable Constant Power (Adjustable current and voltage) 120W LED Driver, Dimming, 90-305Vac input, adjustable 24Vdc and 5000mA output.

Delta 120W 5000mA / 24VDC Adjustable Dimming LED Driver

Programmable, Enabling Hundreds of Configurations – potentiometers to adjust output voltage & constant current (CC) level

Output Current Range: 2500-5000mA

Output Voltage Range: 12-24Vdc in CC mode and 22-27Vdc in CV mode

Dimming Controls: Analog (0-10V), PWM

IP67 and UL Dry/Damp Location

High surge immunity (common mode: 6kV, differential mode: 4kV)
