Description
Advance Xitanium Constant Current LED Driver, 150W Max Output Power, 347-480V input, Fixed 350mA Output Current, 120-425V Output Voltage, 0-10V Analog Dimming, Damp/Dry

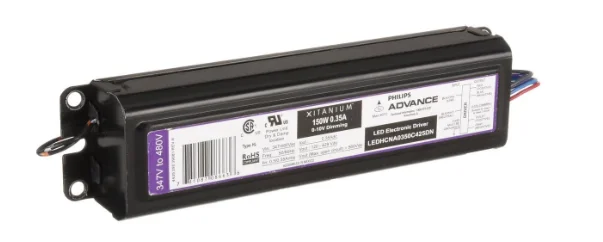

Advance Xitanium 150W LED Driver – 347-480V Input
150W 0.35A Non-isolated dim
LEDHCNA0350C425DN Specifications:
Dimming: 0-10V Analog
Total Max Output Power: 150 Watts
Total Output Voltage: 120-425Vdc
Output Current: Constant 350mA
Input Voltage: 347-480 VAC
Input Line Current: 0.5A @ 347V, 0.35A @ 480V
Min. Power Factor: 0.9
IP rating: IP66
UL Damp and Dry
Min Operating Temperature: -40°C
LED Driver shall be installed inside an electrical enclosure
Spec Sheets
LEDHCNA0350C425DN Spec Sheet
