Description
Keystone SmartCurrent Flex Constant Current LED Driver, 30W Max Power, Universal 120-277V Input, Programmable Fixed Output Current 105-1050mA (factory default 1050mA), 8-55Vdc Output, Analog 0-10V Dimming, Optional Aux Port

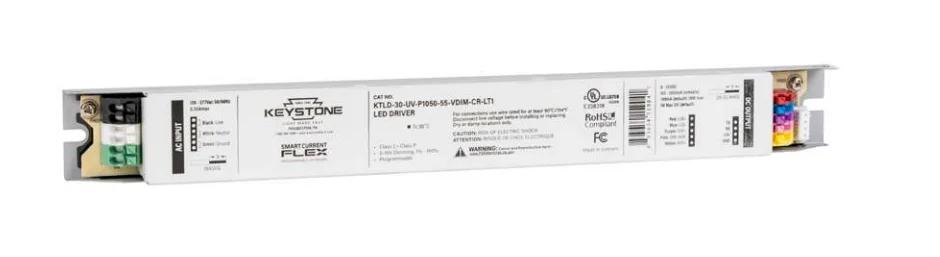

Keystone 30W Linear SmartCurrent Flex LED Driver
LED Driver | Programmable | Constant Current | 30W 105-1050mA Output| 8-55V Output | 120-277Vac Input | 0-10V Dimmable | Optional Aux Tap
Features
Output Power Max: 30 Watt
Programmable Output Current: 105-1050mA (1050mA Factory Default)
Output Voltage 8-55Vdc
Programmable Minimum Dimming Level: 1% to 10% (1% Default)
Programmable Dimming Curve: Linear, Log, or Square (LIN Default)
Programmable Optional Programmable Auxiliary Power: 12V-24V (24V Default)
Protections: Short Circuit Overload, Over Voltage, Over Current, Over Temp
T24: JA8 & IEE1789 Compliant
Indoor Application
Push-in Terminal Connections
BallastShop programs the driver to your specifications prior to shipping at no additional charge.
Keystone SmartCurrent Flex Linear Case LED Driver Models
| CATALOG NUMBER | Max Power Output | Input Voltage | Output Current | Output Voltage | Case | Aux Voltage |
| KTLD-30-UV-P1050-55-VDIM-LT1 | 30W | 120-277V | 105-1050mA | 8-55V | LT1 | No |
| KTLD-50-UV-P1400-55-VDIM-LT1 | 50W | 120-277V | 140-1400mA | 8-55V | LT1 | No |
| KTLD-85-UV-P2300-55-VDIM-LT2 | 85W | 120-277V | 230-2300mA | 10-55V | LT2 | No |
| KTLD-30-UV-P1050-55-VDIM-CR-LT1 | 30W | 120-277V | 105-1050mA | 8-55V | LT1 | 12-24V |
| KTLD-50-UV-P1400-55-VDIM-CR-LT1 | 50W | 120-277V | 140-1400mA | 8-55V | LT1 | 12-24V |
| KTLD-85-UV-P2300-55-VDIM-CR-LT2 | 85W | 120-277V | 230-2300mA | 10-55V | LT2 | 12-24V |
Spec Sheets
Keystone KTLD-30-UV-P1050-55-VDIM-xx-LT1 Specification Sheet
Keystone Smart Current Flex Brochure
