Description
IOTA Emergency LED Driver, Extended Temperature Range, 18W Constant Power Output, 120-277VAC Universal Input, 5000mA Max Output Current, 20-58Vdc Output Voltage, 90 minute emergency operation, IP67 Dry/Damp, external battery packs
IOTA CP Series 18W Cold-Weather Emergency LED Driver

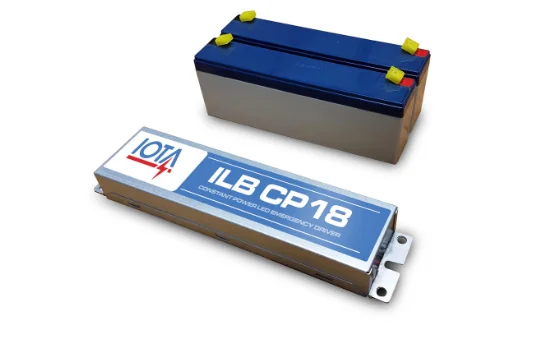

The ILB CP18 HE CW from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB-CP18-HE-CW switches power from the normal LED driver to operate the LEDs in the emergency mode for 90 minutes.
Auto-Sensing: Class 2 Output Auto-adjusting 20-58VDC output range accommodates a wide range of Class 2 forward voltage LED designs
Constant Power Performance: Constant wattage delivery maintains illumination for the full emergency runtime with no degradation
Extended Temperature Performance: -20° to 60°C ambient temperature performance is ideal for outdoor paths of egress and freezing environments.
Certified in CA TITLE 20 Appliance Efficiency Database
Product Options:
ILB-CP18-HE-CW-1LA (Single Lead Acid Battery)
ILB-CP18-HE-CW-2LA (Two Lead Acid Batteries)
Spec Sheets
IOTA ILB-CP18-HE-CW Specifications
