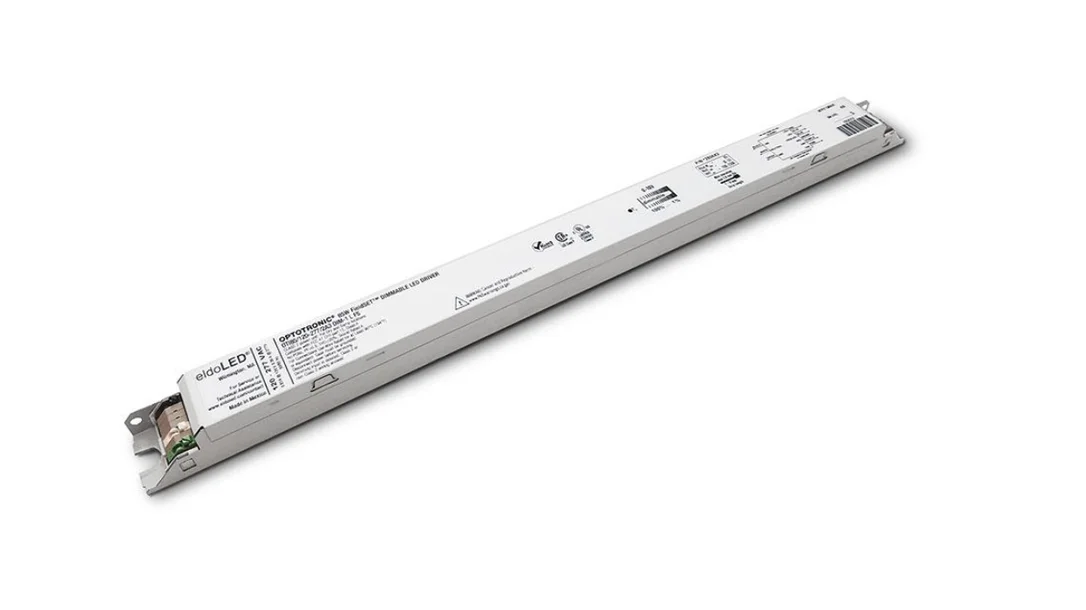

FIELDSET OTI 85W UNV 2A3 1DIM DIM-1 FS eldoLED OPTOTRONIC (284G0T) Constant-Current Field-Programmable LED Driver – 85W 1400mA Dimmable-Fast Shipping

Description

eldoLED Optotronic Constant Current Indoor Linear LED Driver, 85W Max Power Output, Universal 120-277V Input, Field Programmable Output Current 700-2300mA (factory setting 1400mA), Output Voltage 10-55VDC, Dimming 0-10V Analog 1-100%, Linear-Case Feet-Mount

Compatible with: FieldSET Programming Tool

eldoLED Optotronic 85W FieldSET Programmable Constant Current LED Driver

Constant Current AC DC Power Supply

Max Output Power: 85W

Output current programmable in 1mA increments 700-2300mA (factory default 1400mA)

Input Voltage: 120-277 VAC

Output Voltage: 10-55V DC

0-10V Analog Dimming, Range 1%-100% (dim-to-off is programmable)

Damp/Dry IP20 location rated

Linear Housing: Feet Mounting

Case Size 10: Box Markings: FIELDSET OTI 85W UNV 2A3 1DIM DIM-1 FS J10, CI Code *2806X3, UPC 196183325280

Osram Optotronic is now part Acuity eldoLED Optotronic brand family

eldoLED Optotronic FieldSET Programmable LED Drivers

Spec Sheets

OPTOTRONIC FIELDSET OTI 85W UNV 2A3 1DIM DIM-1 FS (*284G0T) Specification Sheet

FieldSET Programmable LED Drivers for Field Replacement

FieldSET Programmer Tool Overview
