Description
FULHAM HotSpot LED Emergency Lighting LED Driver, 8W Constant Power Output, Universal 120-277V Input, Output Voltage 15-55V, Output Current 550mA Max, Integrated Battery, CA Title 20 Compliant, Rated IP20

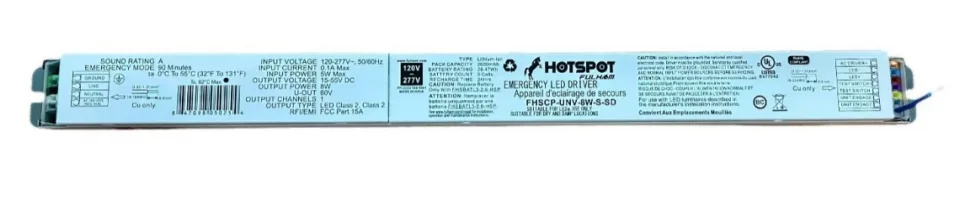

Fulham HotSpot 8W Emergency LED Driver
Recommended applications include troffers, strips, canopies, wall packs, vapor-tight fixtures and more.
Features
UL classified for field or factory installation
Powers emergency lighting for 90 minutes
Backed by a five-year warranty
Operation 24 hour recharge time
CA Title 20 Compliant
Class 2
Compatible Battery Type: Lithium-ion
Test Switch Indicator: Red Light
| Hotspot Constant Power Emergency Drivers | ||||
| Model | Output Power (W) | Connection | Output Voltage | Dimensions (LxWxH) |
| FHSCP-UNV-4W-L | 4 | Wire Leads | 12-55VDC | 5.34″ x 1.69″ x 1.01″ |
| FHSCP-UNV-8W-L-SD | 8 | Wire Leads | 15-55VDC | 8.74″ x 2.05″ x 1.08″ |
| FHSCP-UNV-8W-S-SD | 8 | Terminal Connector | 15-55VDC | 15.9″ x 1.18″ x 1.07″ |
| FHSCP-UNV-10W-BLS-SD | 10 | Bottom-Exit-Studs | 15-55VDC | 5″ x 3.74″ x 1.38″ |
| FHSCP-UNV-10W-C-SD | 10 | Terminal Connector | 15-55VDC | 5″ x 3.74″ x 1.18″ |
| FHSCP-UNV-10W-L-SD | 10 | Wire Leads | 15-55VDC | 9.45″ x 2.05″ x 1.34″ |
| FHSCP-UNV-12W-L-SD | 12 | Wire Leads | 12-55VDC | 12.50″ x 1.63″ x 1.0″ |
| FHSCP-UNV-16W-L-SD-HV | 16 | Wire Leads | 50-300VDC | 9.45″ x 2.05″ x 1.3″ |
Spec Sheets
Fulham FHSCP-UNV-8W-S-SD Spec Sheet
Fulham FHSCP-UNV-8W-S-SD Installation Instructions
