FH5-DUAL-1400L Fulham FireHorse Emergency Ballast – 1400 Lumen-Fast Shipping

Description

FULHAM FireHorse Electronic Fluorescent, 750 Lumen, 120V to 277V, 1 or 2 Lamps, (1) CF9-55 4 Pin, (2) CF9-39 4 Pin, (1) F24-54T5HO, (1) F4-35T5, (1/2) F13-32T8, (1/2) F14-40T12, (1) F25-110T12HO, Emergency Ballast

DISCONTINUED BY MANUFACTURER. Shipping Recommended Replacement: Fulham FH12-UNV-1400L-CEC

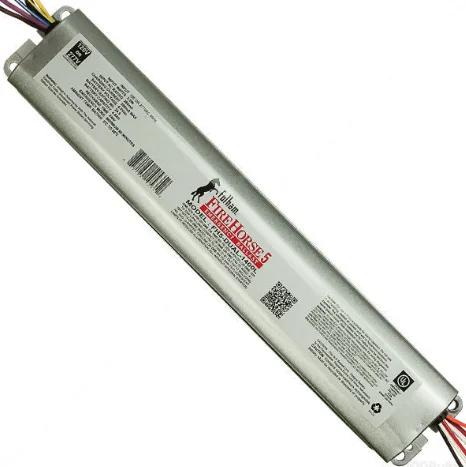

Fulham FireHorse 1400 Lumen Emergency Light Ballast for Single/Bi-Pin/4-Pin Lamps

Specifications

UL Approved

Operating Voltage: 120v/277v

Initial Lumen Output: 1400

Minimum Illumination Time: 90 Minutes

AC Input: 3.5W

Charging Current: 280mA Max.

Battery Voltage: 6.0 Vdc

Battery Rating: 24.0 Wh

This Ballast Will Operate Following Single/Bi-Pin/4-Pin Lamps.

(1) 42W 4-PIN

(1/2) 9W TO 32W 4-PIN CFL

(1) 18W TO 55W 4-PIN LONG COMPACT

17W TO 40W (2-4) T8/T10/T12

17W TO 215W (2-8) T8/T10/T12 INCLUDING HO, VHO, U-SHAPED, CIRCLINE

(1) 8W TO 54W T5 FLUORESCENT LAMPS AT REDUCED ILLUMINATION (ALL WITHOUT INTEGRAL STARTER)

Spec Sheets

Fulham FH5-DUAL-1400L Specs
