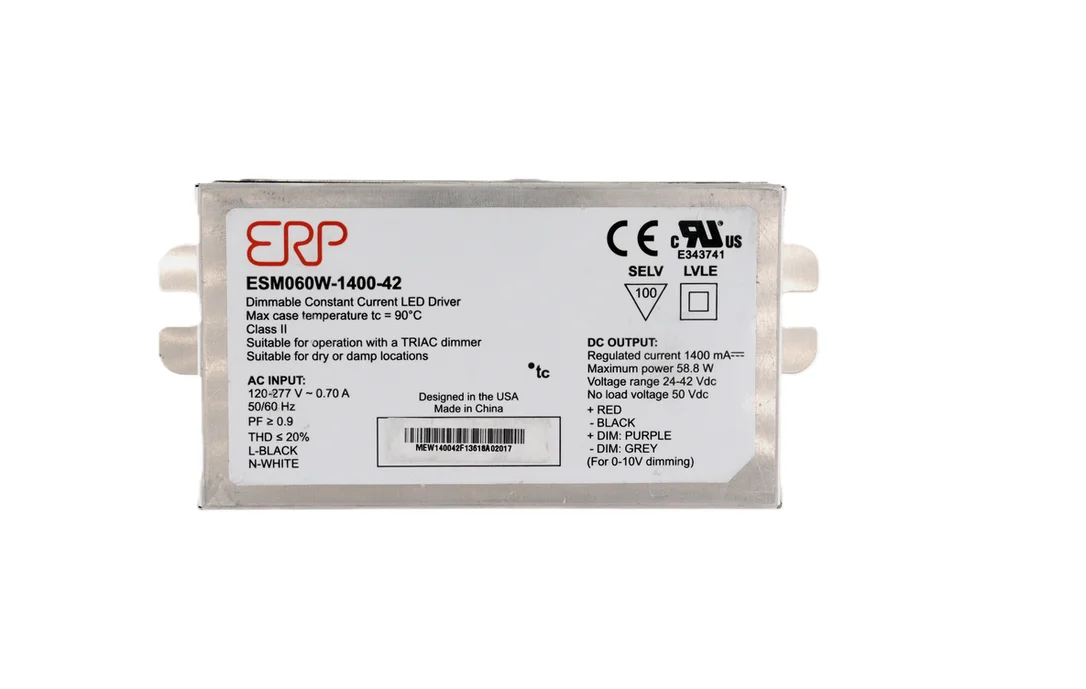

ESM060W-1400-42 ERP Power Constant Current LED Driver – 60W 1400mA Bottom-Exit-Studs-Fast Shipping

Description

ERP Power Constant Current LED Driver, 60W Max Power Output, Universal 120-277V Input, Fixed 1400mA Output Current, 24-42Vdc Output, Dimming 0-10V/TRIAC/ELV, Bottom Exit Leads with Stud Mount

ERP Power 60W 1400mA Constant Current Dimmable LED Power Supply

Class 2 power supply

Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements

IP20-rated Bottom Leads with Studs metal case with silicone based potting.

90°C maximum case hot spot temperature

Class 2 power supply

Compatible with TRIAC (forward-phase or leading-edge), ELV (reverse-phase or trailing-edge) and 0-10 V dimmers

TRIAC and ELV dimming only at 120 Vac

Linear 0-10V dimming transfer function (10V=100%, 1V=10%, 0.1V=1%).

Spec Sheets

ERP Power ESM060W-1400-42 Spec Sheet

ERP LED Drivers Catalog
