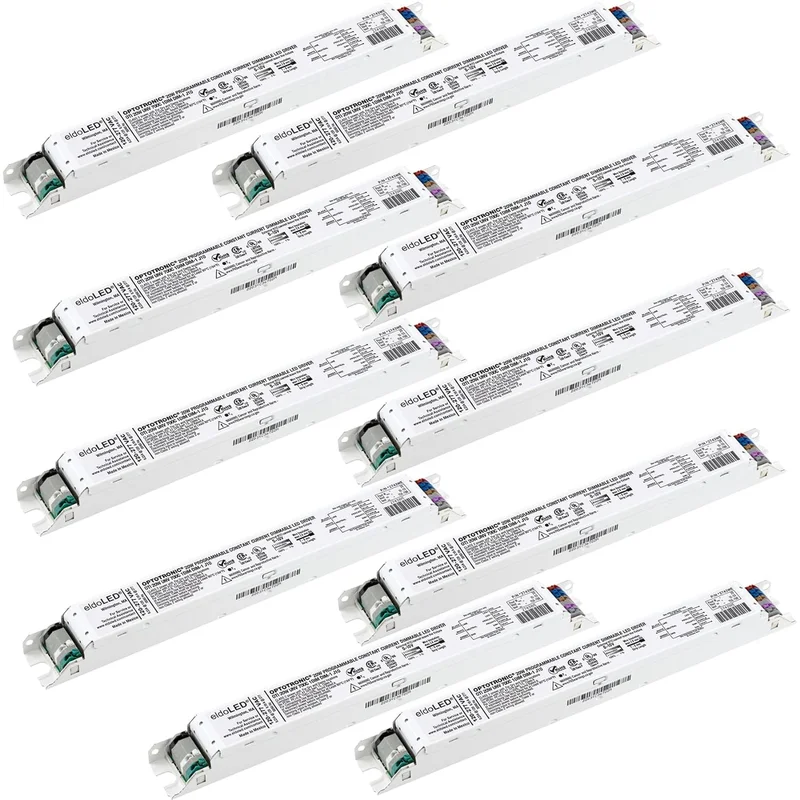

Eldoled Pack Of 10 2743We Optotronic 20W Constant Current 0-10V Dimmable Led Driver, Programmable Linear Oti20/120-277/700Dim-1L-Fast Shipping

Description

OPTOTRONIC Linear Programmable LED Drivers Product FeaturesProgrammable Features:Output current Dimming level Dim-to-off Soft Start LED thermal protection Auxiliary output voltage Constant lumen output End-of-life indicatorInput Voltage: 120-277V (+/- 10%) Frequency Range: 50-60 Hz (+/- 10%) Max. Output Power (W): 20W Dimming Control: 0-10V (Isolated) Dimming Range: 1-100% Output Voltage (VDC): 10-55VDC Output Current (mA): 150-700mA (1mA step), Default 350mA Product Dimensions (L x W x H):11.00” x 1.14” x 1.00” Product Weight: 8.3oz UL Environmental Rating: Dry & Damp Quantity: 10Product Family FeaturesOEM Programmable with 1mA resolution to perfectly match LED load and maximize performance Integrated OEM programmable features include:Constant lumen maintenance End of life indication LED thermal protectionProgramming doesn’t require powering up or connecting the power supply to AC line voltage Specification grade dimming down to 1% or 10% on 0-10V dimmers Available optional auxiliary output to power 12 V, 20 V, and 24 V low power applications Slim form factors Input voltage:Universal 120-277 VAC 50/60Hz 347 VAC 50/60 HzUL Class 2 output for safe operation, Class PAreas of ApplicationIndirect/direct Linear Recessed troffer
