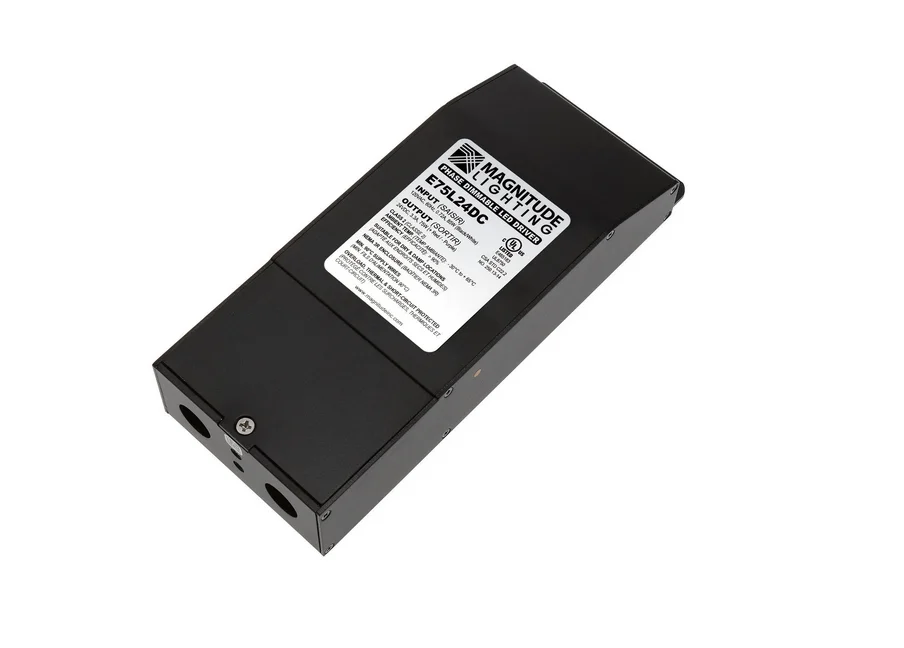

E75L24DC Magnitude (E75L24DC-KO) E-Series Constant Voltage LED Driver – 75W 24V Dimmable Junction-Box-Fast Shipping

Description

Magnitude Lighting Constant Voltage LED Driver, 75W Max Power, 120V Input, Fixed 24Vdc Output, Output Current up to 3300mA, Phase Dimmable 1%-100%, NEMA 3R Junction Box

Magnitude 75W 24V Constant Voltage Dimming LED Power Supply – UL Listed

Max 75W LED Power Supply

Input Voltage: 120VAC, Output Voltage: 24VDC

Current Output: up to 3.3A

Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers

Class 2 power supply

UL Listed enclosure. Wiring compartment with two ½” knockouts

E75L24DC-KO / E75L24DC are the exact same

Spec Sheets

Magnitude E75L24DC Spec Sheet

Magnitude E75L24DC Installation Guide

Magnitude E-Series Dimmer Compatibility List
