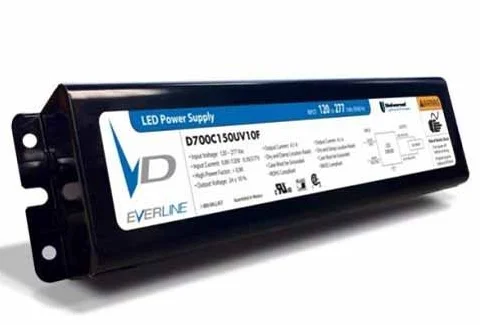

D700C150UVT-F Universal EVERLINE Programmable LED Driver – 150W 700mA Dimmable-Fast Shipping

Description

Universal Everline 150W LED Driver, Constant Current, 120-277Vac Input, 230-700mA (Factory Set 700mA) fixed output current, 75-214Vdc Output, 0-10V Dimming 10%-100%

Universal Everline 150W Programmable Dimmable LED Driver

The EVERLINE series of LED drivers and linear modules makes it easy to configure a full featured, high efficiency linear LED lighting system. A variety of configurations are available to easily meet Design Light Consortium (DLC) requirements.

150W Max Output

Output Current 230-700mA (Factory Set 700mA)

0-10V Dimming wired as Class 1 or Class 2 Circuit

700 mA Constant Current Output

Class 2 Output

Max Input Current 1.40 at 120V, 0.59 at 277V

75-214V Output

120-277V Input

Start Temp. (Min) -40C (-40F)
