Description

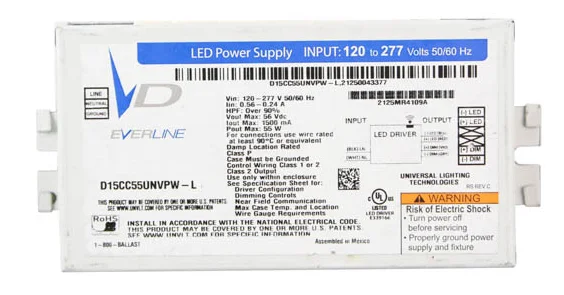

Universal Everline D15CC55UNVPW-L Constant Current Programmable LED Driver, 55W Max Power, 120-277V Input, 700-1500mA Output (factory set at 1500mA), 16-56VDC Output, 0-10V Dimming 1%-100%, (-L) Compact Case Feet Mount.
DISCONTINUED by MANUFACTURER – Click here to order exact replacement and enter required output current. OTi55W/120-277/2A0/DIM-1
Universal Everline 55W Constant Current LED Driver
The EVERLINE PW series of Constant Current Linear LED Drivers features wireless programming, auxiliary output power, dim to off (programmable) and configurable dimming curves.
Constant Current LED Driver
0-10V Dimming to 1% standard or dim-to-off upon request.
Output Power 55W
Input Voltage: Universal 120~277V
Output Voltage: 16V to 37V @ 1.50 Amps 16V to 56V @ 0.98 Amps
Max Output Current 1500mA
Start Temp. (Min) -40C (-40F)
UL Damp/Dry location rated
Class 2 rated
Spec Sheets
Universal Everline D15CC55UNVPW-L Specification Sheet
