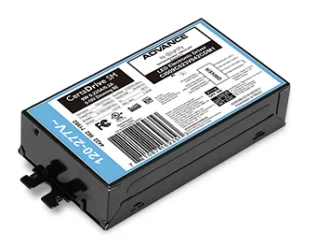

CI042C100V042CDM1 Advance CertaDrive SM Constant Current LED Driver – 42W 900mA/1000mA Bottom-Exit-Studs-Fast Shipping

Description

Advance CertaDrive SM Point Constant Current LED Driver, 42W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 900mA or 1000A Output Current, 24-42V Output, Analog 0-10V Dimmable 1%-100%, Bottom Entry Studs

Advance CertaDrive SM 42W 900mA/1000mA Constant Current LED Driver – Bottom-Studs

100 – 277Vac, 42W, 900/1000mA, 24-42V, [0-10V], Bottom Entry Stud Mount

Total Max Output Power: 42W

Constant Output Current 900mA or 1000mA – Adjustable via DipSwitch

Input Voltage: 120-277 VAC

Output Voltage Range: 24-42VDC

UL Damp and Dry

Dimmable 1%-100%, 0-10V Analog

Class 2 Wiring

Bottom Exit Stud Mount

Spec Sheets

Advance Certadrive CI042C100V042CDM1 Spec Sheet
