Description
Advance CertaDrive X-Series Constant Current LED Driver, Up to 36W Power Output, Input 120V-277V, Fixed Output Current Switch Select 725mA or 750mA, Output 28-48V, Dimmable 0-10V Analog 10%-100%

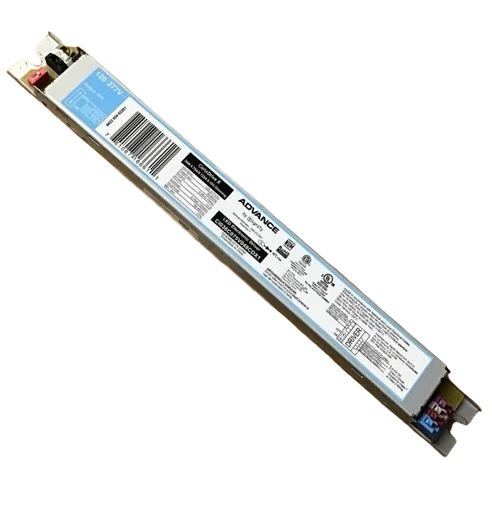

Advance CertaDrive 36W Dimmable LED Power Supply
36W 0.725/0.75A 48V 0-10V 120-277V LED Driver
Total Output Power: 36W Max
Output Current 725mA or 750mA – Adjustable via Switch
Input Voltage: 120-277 VAC
Output Voltage Range: 28-48VDC
UL Damp and Dry
Dimmable 10%-100%, 0-10V Analog
Class 2 Wiring
CertaMatch Troffer System Suggest Pairings: 120V, 2 4ft Modules
| 3500K (CCT) | LED Driver | Drive Current (mA) |
| Fortimo LED Strip VO 44in 2700lm 8xx LV3 | CI065C135V048CDX1 | 1350 |
| Fortimo LED Strip VO 44in 5400lm 8xx LV3 | CI065C135V048CDX1 | 1350 |
| Fortimo LED Strip VO 44in 8100lm 8xx LV3 | CI065C135V048CDX1 | 1350 |
| Fortimo LED Strip VO 44in 2700lm 8xx LV3 | CI036C075V048CNN2 | 725 |
| Fortimo LED Strip VO 44in 5400lm 8xx LV3 | CI036C075V048CNN2 | 725 |
| Fortimo LED Strip VO 44in 8100lm 8xx LV3 | CI036C075V048CNN2 | 725 |
| 4000K (CCT) | ||
| Fortimo LED Strip VO 44in 2700lm 8xx LV3 | CI065C135V048CDX1 | 1350 |
| Fortimo LED Strip VO 44in 5400lm 8xx LV3 | CI065C135V048CDX1 | 1350 |
| Fortimo LED Strip VO 44in 8100lm 8xx LV3 | CI065C135V048CDX1 | 1350 |
| Fortimo LED Strip VO 44in 2700lm 8xx LV3 | CI036C075V048CNN2 | 725 |
| Fortimo LED Strip VO 44in 5400lm 8xx LV3 | CI036C075V048CNN2 | 725 |
| Fortimo LED Strip VO 44in 8100lm 8xx LV3 | CI036C075V048CNN2 | 725 |
Spec Sheets
CI036C075V048CDX1 Spec Sheet
CertaMatch Troffer System Suggested Pairings
