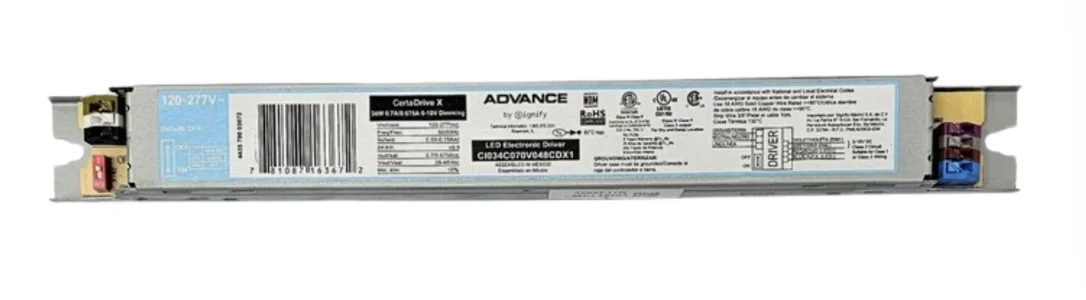

CI034C070V048CDX1 Advance CertaDrive X-Series Field-Select LED Driver – 34W 675/700mA Dimmable-Fast Shipping

Description

Advance CertaDrive Constant Current LED Driver, Up to 34W Power Output, Universal 120V-277V Input, Field Selectable 675mA or 700mA Fixed Output Current, Output Voltage 28-48V, Dimmable 0-10V Analog 10%-100%

Advance CertaDrive 34W Dimmable Indoor LED Power Supply

34W 0.675-0.7A 48V 0-10V 120-277V IP20

Total Output Power: 41W Max

Output Current 675mA or 700mA – Adjustable via Switch

Input Voltage: 120-277 VAC

Output Voltage Range: 28-48VDC

UL Damp and Dry

Dimmable 10%-100%, 0-10V Analog

Class 2 Wiring

CertaMatch Troffer Suggested Systems Pairings: Click Link Below

120V, 1 x 4ft Module (or 2 x 2ft) at 675mA

Fortimo LED Strip VO 44in 2700lm 830 LV3 (929002722713)

Fortimo LED Strip VO 44in 2700lm 835 LV3 (929002722813)

Fortimo LED Strip VO 44in 2700lm 840 LV3 (929002722913)

Fortimo LED Strip VO 44in 2700lm 850 LV3 (929002723013)

Fortimo LED Strip VO 44in 5400lm 830 LV3 (929002723113)

Fortimo LED Strip VO 44in 5400lm 835 LV3 (929002723213)

Fortimo LED Strip VO 44in 5400lm 840 LV3 (929002723313)

Fortimo LED Strip VO 44in 5400lm 850 LV3 (929002723413)

Fortimo LED Strip VO 44in 8100lm 830 LV3 (929002723513)

Fortimo LED Strip VO 44in 8100lm 835 LV3 (929002723613)

Fortimo LED Strip VO 44in 8100lm 840 LV3 (929002723713)

Fortimo LED Strip VO 44in 8100lm 850 LV3 (929002723813)

Spec Sheets

Advance CertaDrive CI034C070V048CDX1 Specs

CertaMatch Troffer System Suggested Pairings
