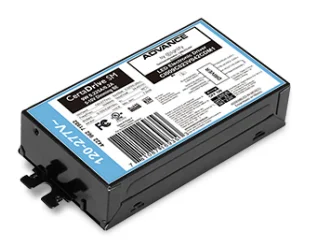

CI023C055V042CDM1 Advance CertaDrive SM Constant Current LED Driver – 23W 500/550mA Bottom-Entry-Studs-Fast Shipping

Description

Advance CertaDrive SM Point Constant Current LED Driver, 23W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 500mA or 550mA Output Current, Output 24-42V, Dimmable 0-10V Analog 10%-100%, Bottom-Entry Stud Mount

Advance CertaDrive SM 23W 500/550mA Constant Current LED Driver – Bottom-Studs

100 – 277Vac, 23W, 500/550mA, 24-42V, [0-10V], IP20 LED Driver, Bottom-Entry Stud-Mount

Total Max Output Power: 19W

Constant Output Current 400mA or 450mA – Adjustable via Switch

Input Voltage: 120-277 VAC

Output Voltage Range: 24-42VDC

UL Damp and Dry

Dimmable 10%-100%, 0-10V Analog

Class 2 Wiring

Bottom-Entry Stud-Mounting

Spec Sheets

Advance Certadrive CI023C055V042CDM1 Spec Sheet
