Description
Advance CertaDrive SM Point Constant Current LED Driver, 19W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 400mA or 450mA Output Current, Output 24-42V, Dimmable 0-10V Analog 10%-100%, Bottom Exit Studs

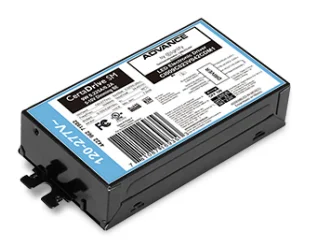

Advance CertaDrive 19W 400/450mA Constant Current LED Driver – Bottom-Studs
100 – 277Vac, 19W, 400/450mA, 24-42V, [0-10V], IP20 LED Driver, Bottom Exit Studs
Total Max Output Power: 19W
Constant Output Current 400mA or 450mA – Adjustable via Switch
Input Voltage: 120-277 VAC
Output Voltage Range: 24-42VDC
UL Damp and Dry
Dimmable 10%-100%, 0-10V Analog
Class 2 Wiring
Bottom Entry with Stud Mounting
Spec Sheets
Advance Certadrive CI019C045V042CDM1 Spec Sheet
