Description
Bridgelux Pallas-A Series Linear LED Driver, 40W Max Output Power, Universal CAN 120/277/347V Input, Programmable Fixed Output Current of 100-1000mA (factory setting 1000mA), Output Voltage 20-50Vdc, Analog 0-10V Dimming 1%-100%

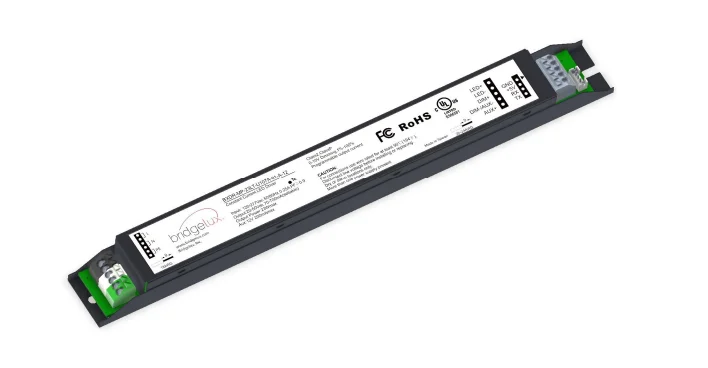

Bridgelux 40W Programmable Constant Current LED Driver
AC to DC Converter
Input Voltage: 120/277/347VAC
Output Voltage: 20-50VDC
Output Current: 100-1000mA programmable, FACTORY SET TO 1000mA
Class 2, Class P
Dry and Damp Rated, IP20
0-10V Analog Dimming 1%-100% via a standard commercial wall dimmer or external resistor
12V Auxiliary Source: No
Spec Sheets
Bridgelux BXDR-MP-40LW-C110A-01-A Spec Sheet
