BSL06 Bodine Emergency LED Driver – 6W 780-lumen Compact Case-Fast Shipping

Description

Bodine Compact Case Emergency LED Driver, 6W Max Output Power, Universal 120-277V Input, 780 Lumens, 15-54V output, Plenum Rated Metal Test-Switch Indicator-Light Assembly, Stud or Feet Mount Options, CEC Title 20 Compliant, Batteries Included.

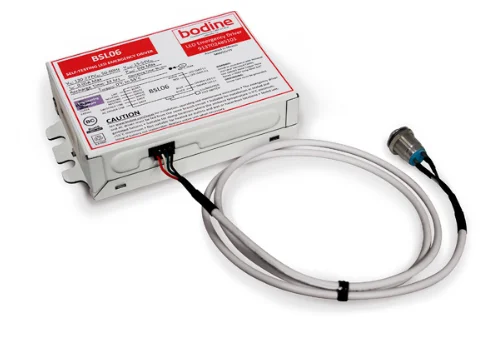

BODINE Compact 6W 780 Lumen Emergency LED Driver

The new Bodine 6W emergency LED driver is the first of its kind emergency solution in a compact metal housing, designed for space-limited LED applications and easily installs onto the junction box of a fixture, opposite of the normal LED driver.

Models J-box or Feet mount

For Field or Factory Installation (Indoor and Damp)

Automatic code-compliant testing

Class 2 wiring

Meets California Energy Commission Title 20 efficiency requirements

Plenum Rated Metal Test Switch Assembly

Maintenance-Free Li-ion Battery

LED test switch and charging indicator light is provided

Versions Available:

J-Box (Stud) Mount: BSL06M5UAK55BSI1 (913702485201)

Feet Mount: BSL06M5UAK55LDI1 (913702485101)

Spec Sheets

Bodine BSL06 Spec Sheet

Bodine BSL06M5 Sales Flyer
