Description
Philips BODINE Emergency Ballast, up to 1250 Lumens, 120V to 277V, Single Lamp Operation, one 13-42W twin, quad or triple twin-tube lamp, one 22-40W T5 circline or one 18-39 W (2G11 base) long compact fluorescent lamp, M version with metal case.

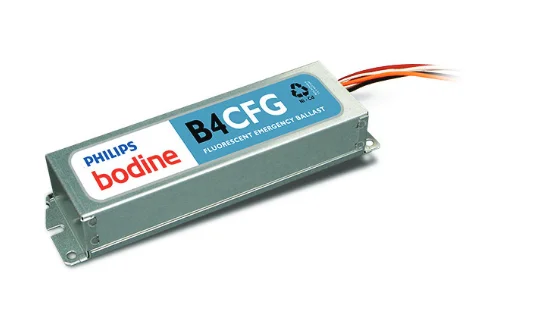

Philips Bodine Extended Temperature Compact Emergency Lighting Ballast
The B4CFG emergency ballast works in conjunction with an AC ballast to convert new or existing fluorescent fixtures into emergency lighting.
Specifcation Grade, One-lamp Emergency Illumination for Damp Location
Features
Initial light output up to 1250 Lumens @ 25°C
Illumination time of 90 minutes
Single pole test switch and LED indicator light included
Rating Ambient Temp. Range 32°F to +122°F
Dual input voltage of 120V to 277 VAC, 60 Hz
High-temperature, maintenance-free nickel-cadmium battery
Input AC power rating 4.0 watts
M version galvanized metal case
Cross references with: Iota I-320
