Description
Magnitude Lighting Constant Current LED Driver, Select 30W/40W/50W/60W/75W/100W Max Power Output, Universal 120-277V Input, Programmable Output Current 100-1650mA (factory default 1650mA), 10-57VDC Output, Analog 0-10V Dimming 0.1-100%

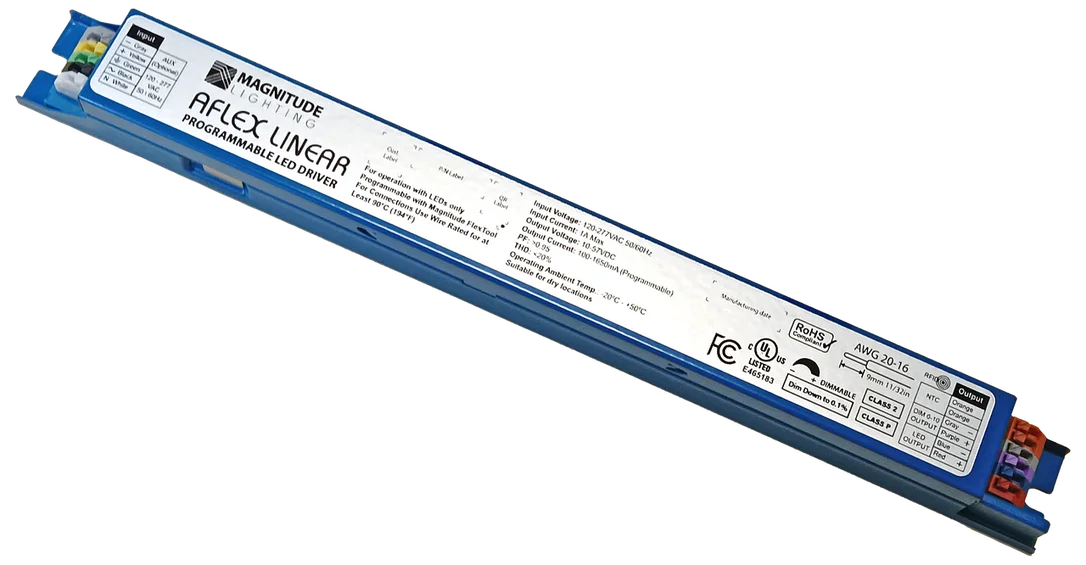

Magnitude 100W 1650mA Linear Programmable Constant Current LED Driver
These LED drivers provide a constant 12DC voltage output. The LED module, connected in parallel, is designed to run at a specified voltage and incorporates a current regulator to control the current through the LED. Constant Voltage drivers are ideal for sign applications because of their flexibility to connect a wide range of modules in parallel.
Max Power Output Options: 30W 40W 50W 60W 75W 100W
Output Voltage: 10-57V
Programmable Output Current: 100-1650mA (1650mA default)
Dimming: 0-10V Analog, 0.1% to 100%
Dimming Curve: Linear “L” (default), Logarithmic “G”
Auxiliary Power Port Options: 12V (default), 24V
Terminal blocks with side feed
Dry, IP40 Rated
CA Title 24 compliant
Class 2
Size 12.0″ L x 1.20″ W x 1.0″ H
Spec Sheets
Magnitude AFLEX 100W 1650mA Linear LED Driver Specification Sheet
Magnitude AFLEX Brochure
Magnitude AFLEX Linear LED Driver Installation Guide
