AC30CD700AP0Q ACE LEDS Programmable Constant Current LED Driver – 30W 700mA Dimmable-Fast Shipping

Description

AC Electronics (ACE LEDS) Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Output Current 125-700mA (default 700mA), 14-42V Output, Analog 0-10V Dimming, Feet Mount, IP64

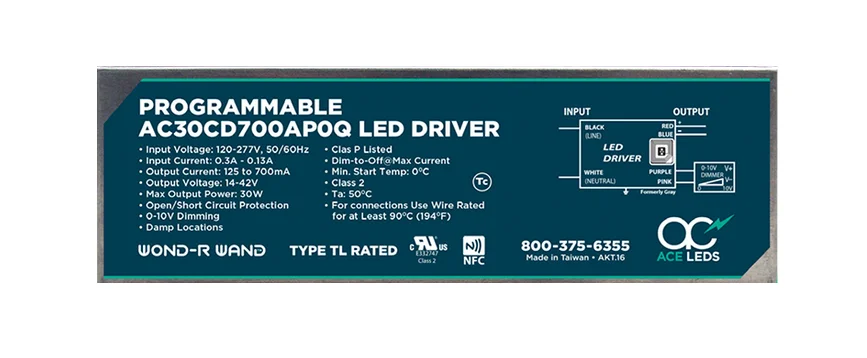

ACE LEDS 30W 700mA Programmable Constant Current LED Driver

Adjustable Current and Dimming

Max Output Power: 30W

Output Current: 125-700mA

Output Voltage: 14-42V

Input Voltage: 120-277V

0-10V Dimming

Dimmable Range: 0-100%

Max Case Temp: 194°F/90°C

Min Starting Temp: 0°C

UL and cUL Recognized

Class A Sound Rating

Surge Protection 2KV

LED drivers shall be installed inside electrical enclosures

Spec Sheets

ACE LEDS AC30CD700AP0Q Specs

Certificate of Acceptance COA
