Description

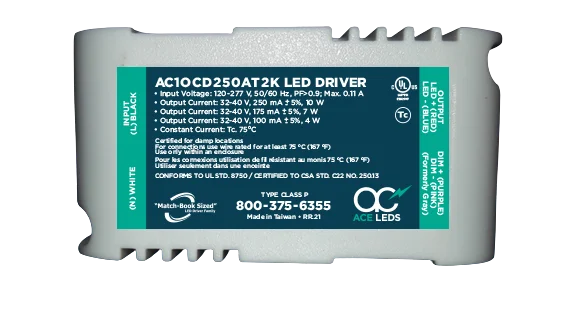

AC Electronics (ACE LEDS) Constant Current Select-able LED Driver, 120-277V input, Multi-Switching Power/Current 10W/250mA or 7W/175mA or 4W/100mA, 32-40V output, Analog 0-10V dimming, Side Exit Leads, IP20, Small Case
AC Electronics Mult-Switching Constant Current LED Driver
With the use of screwdriver, easily adjust the current to allow for 10, 7 or 4 watts of power.
Side Mount Leads
Selectable Max Output Power/Fixed Output Current: 10W/250mA, 7W/175mA, 4W/100mA
Output Voltage: 32-40V
Input Voltage: 120-277V
Input Frequency: 50-60hz
0-10V Dimming
Dimmable Range: 100-5%
Class P Listed
Class A Sound Rating
Use only with in enclosure
Surge Protection 2Kv
IP Rating: 20
Approved Dimmers: Lutron NTSTV-DV, Leviton IP710 DL, Lutron NFTV, Watt Stopper ADF 120277
Spec Sheets
AC Electronics AC10CD250AT2K Specs
