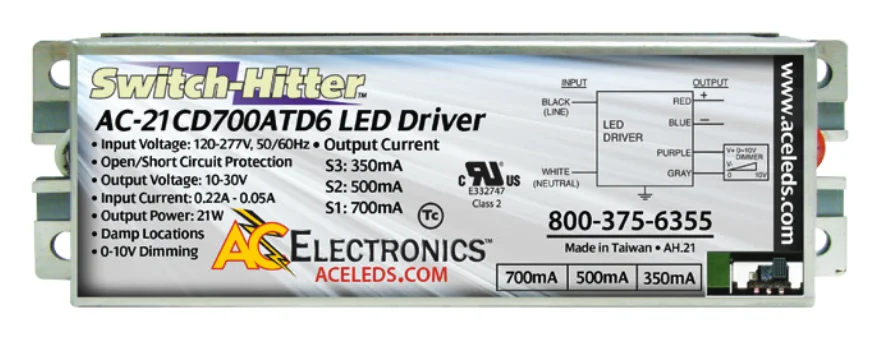

AC Electronics AC-21CD700ATBD6 Bottom Mount Switch Hitter LED Driver-Fast Shipping

Description

AC Electronics Constant Current LED Driver, 21/15/10.5W, 700/500/350mA, 120-277V input, 0-10V Dimming, Bottom Mount
AC Electronics Constant Current LED Driver

Bottom Mount

Multi-Current Switching

Switch 1: 21W, 700mA

Switch 2: 15W, 500mA

Switch 3: 10.5W, 350mA

Output Voltage: 10-30V

Input Voltage: 120-277V

0-10V Dimming

Dimmable Range: 100-10%

Max Case Temp: 194°F/90°C

Min Starting Temp: -40°F/-40°C

UL and cUL Recognized

Class A Sound Rating

RoHS Compliant

IP66 Harsh Weather Certified

Surge Protection
