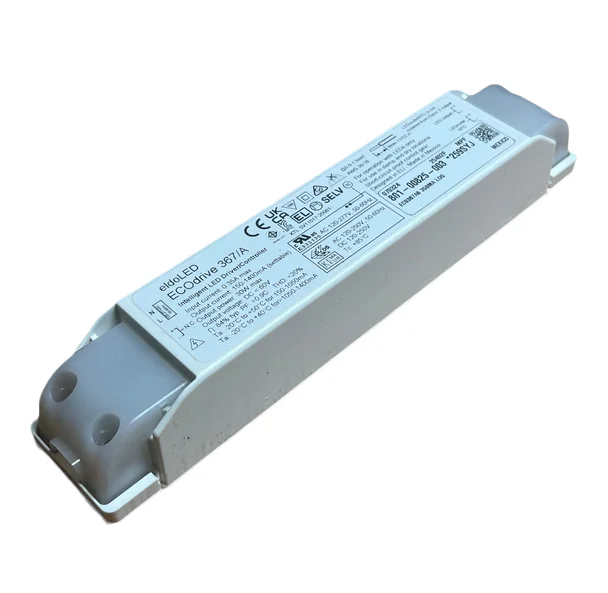

367/A ECOdrive (EC0367A6) eldoLED Programmable Constant Current LED Driver – 30W LEDcode Dimming-Fast Shipping

Description

ECOdrive 367/A Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, Single 2-55V Output, LEDcode2 Dimming 1%-100%, Side Feed w/ Plastic Cover Feet Mounting

eldoLED ECOdrive 367/A 30W Constant Current LED Driver – LEDcode2

ECOdrive, 30W, LEDcode2, 1 control channel, constant current, 1 x 55V output, side feed, square metal case/plastic lead cover

Programmable Options:

Output Current: 150-1400mA in 1mA increments

Dimming Curve: LIN linear, LOG logarithmic (factory default)

Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.
